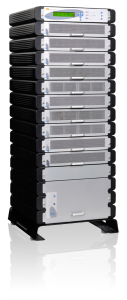

Power+ Classic is an electrically and mechanically modular 10-100kVA UPS system, uniquely designed to grow flexibly as your power requirements grow.

Easily upgradable on-site through addition of plug-and-play 10kVA modules

Power+ is a parallel redundant UPS. The system is comprised of 1 to 10  modules of 10kVA each, a system controller, static switch module, and a distribution block. Power+ offers the optimal combination of efficiency, economy, and usability – and boasts the industry lowest TCO (Total Cost of Ownership) and fastest ROI (Return on Investment).

  • The flexible system is user upgradable from 10kVA to 100kVA (or 50Kva with a suitable base).
  • Modules are designed for hot insertion, hot swap.
  • The battery bank is common to all the modules and can be structured as one or more branches,for battery redundancy.
  • The Power+ controller has an internal communication card, which in conjunction with Gamatronic’s PSM software enables remote management of the unit, including real-time monitoring and operational control.
  • Parallel option only available for 60kVA & higher (on 100kVA model)
  • Power+ Classic is available in a 50Kva Static Switch or 100 kVA Static Switch, or 100kVA Static Switch Parallel version.
